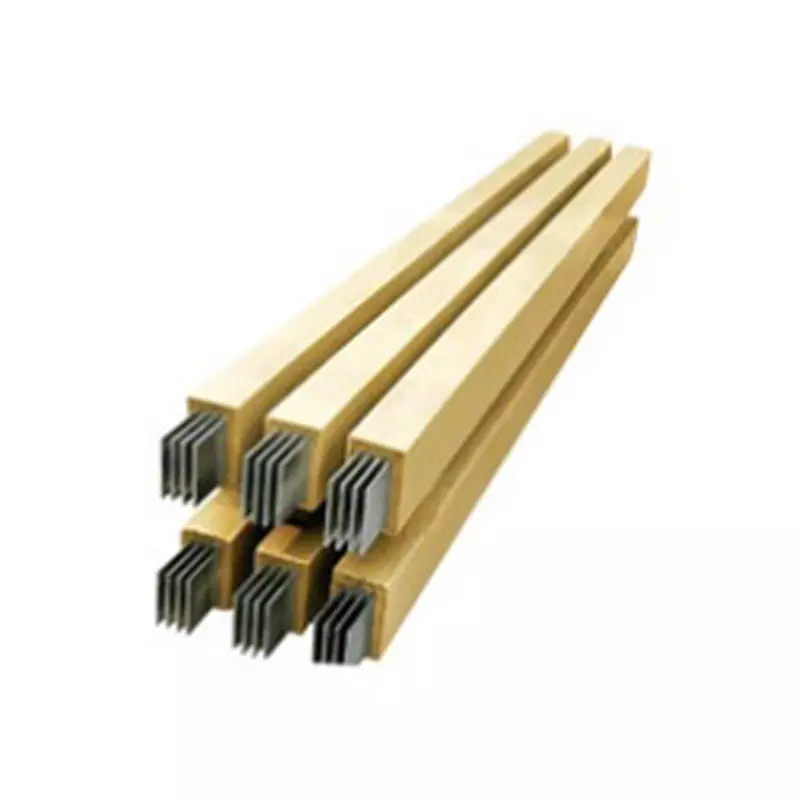

Waterproof Busway System
Product Overview
Our Waterproof Busway System is engineered to deliver reliable power distribution in demanding environments where moisture, dust, and corrosion are constant challenges. Designed to IP65/IP66 standards, it ensures uninterrupted electrical connectivity in industrial plants, coastal facilities, offshore platforms, and outdoor installations.
Key Features
-
High-Level Protection: Rated IP65/IP66 for complete defense against water jets, dust ingress, and corrosive atmospheres
-
Robust Construction: Housing made of marine-grade aluminum alloy or galvanized steel with powder-coated finish
-
Sealed Joint Technology: Triple-sealed connection system with silicone gaskets and compression locking
-
Corrosion Resistance: Anti-corrosion treatment suitable for coastal and chemical environments
-
Thermal Management: Optimized design with heat-dissipating fins for continuous high-current operation
Technical Specifications
-
Voltage Rating: Up to 690V AC
-
Current Capacity: 100A-5000A
-
Frequency: 50/60Hz
-
Insulation Class: Class B/F (155°C/180°C)
-
Protection Level: IP65/IP66 (standard), IP68 available
-
Fire Rating: Meets IEC 60331-21 flame resistance standards
-
Ambient Temperature: -35°C to +55°C
Applications
-
Offshore & Marine: Oil rigs, shipyards, port facilities
-
Industrial: Chemical plants, water treatment facilities, mining operations
-
Infrastructure: Tunnels, bridges, underground transportation systems
-
Utilities: Pumping stations, wastewater plants, coastal power stations
-
Special Environments: Food processing, pharmaceutical facilities with washdown requirements
Advantages
-
Uninterrupted Operation: Maintains performance in wet and humid conditions
-
Reduced Maintenance: Sealed design minimizes cleaning and inspection needs
-
Quick Installation: Modular components with weatherproof quick-connect joints
-
Safety Compliance: Meets IEC 61439-6, UL 857, and relevant marine standards
-
Monitoring Options: Integrated moisture and temperature sensors available
Customization
We offer tailored solutions including:
-
Custom lengths and bending angles
-
Specialized corrosion coatings for extreme environments
-
Integration with fire-resistant systems
-
Smart monitoring packages for predictive maintenance
