1. Overview

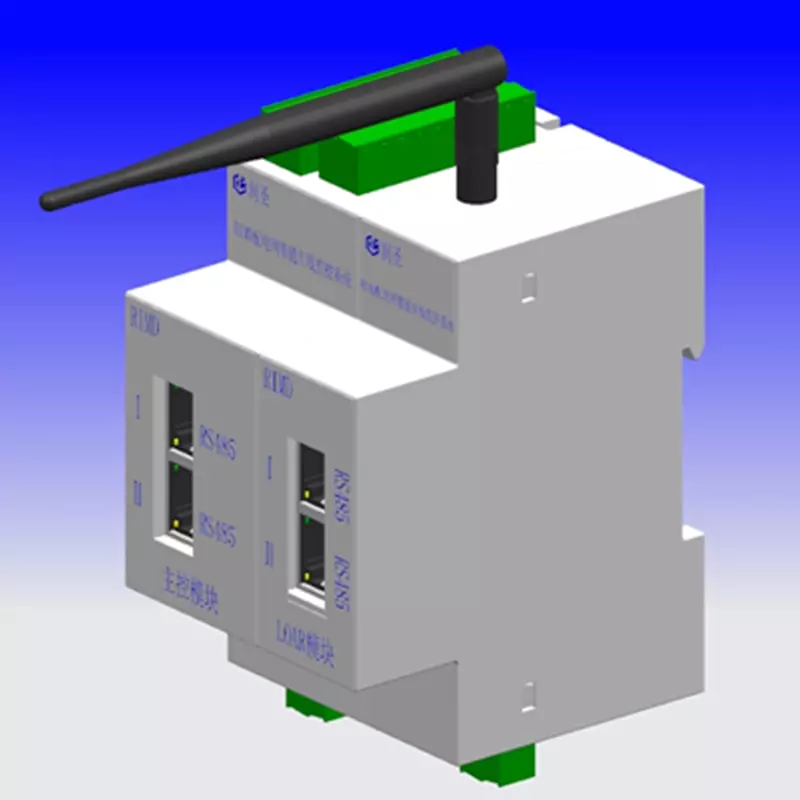

The RL series intelligent bus duct is composed of our RL series bus duct and the RIMD distribution network intelligent online monitoring system. It can monitor and control the operating conditions of the starting box and plug-in box of the bus duct (full power measurement: voltage, current, frequency, active power, reactive power, power factor, active energy, reactive energy; 1-31 harmonics; temperature; humidity; leakage current; switch input; switch output, etc.) and the temperature of the bus duct connector continuously or at regular intervals, and can comprehensively evaluate, display and warn the monitoring items. This is beneficial for managers to have a comprehensive and objective understanding of the power situation, reduce power operation failures, and achieve the best operation and maintenance effect.

The RL series intelligent bus duct is a safe, reliable, compact, efficient, and customized low-voltage power transmission solution. The RL series intelligent bus duct can completely replace the traditional low-voltage bus duct, saving time and space for users and installers. At the same time, the bus duct adopts a typical sandwich structure, with compact conductor arrangement and overall heat dissipation, which can further reduce its own power loss and voltage drop.

2. Product Features

1. Establish an unmanned, automated and intelligent management approach to promote the realization and development of a green power grid.
2. Conduct 24-hour remote online monitoring of the operation and environmental status of the bus ducts, and automatically issue warnings for excessive monitoring information.
3. Provide 24-hour remote online operation and maintenance services, enabling timely detection of equipment hazards and elimination of equipment obstacles, providing strong technical support.
4. Offer comprehensive display effects in the form of data and graphics, ensuring comprehensive monitoring and diverse display, and automatically recording historical data and alarm information logs.
5. Reduces inspection frequency, improves inspection quality, and lowers maintenance costs.
6. Has high compatibility of transmission protocols, using LORA wireless transmission or RS485 communication.
