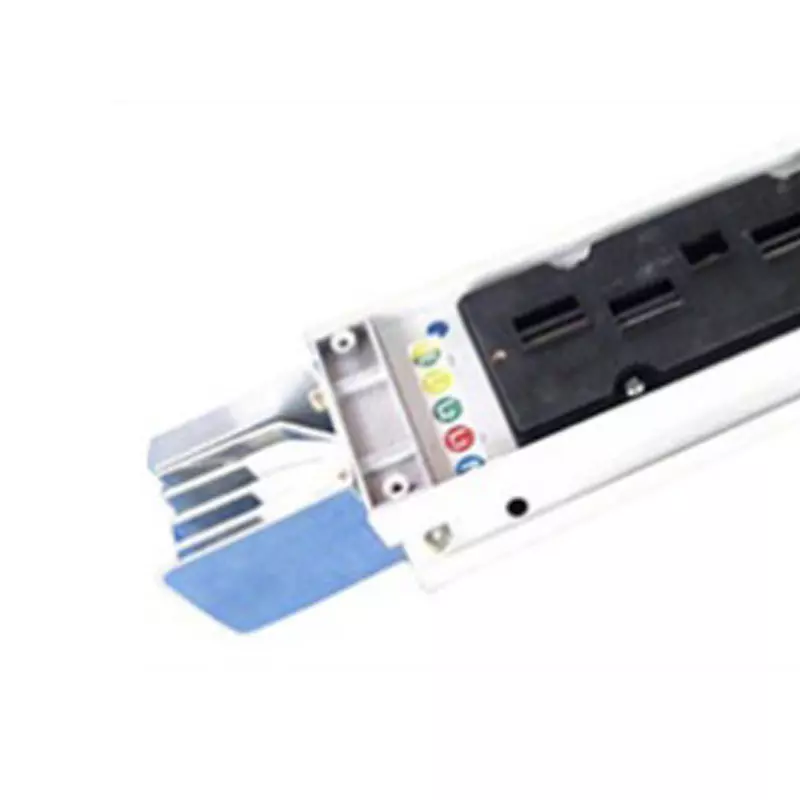

Plug-in Busway System - Product Overview

Product Introduction

Our Plug-in Busway System represents the next generation of power distribution technology, offering unparalleled flexibility, safety, and efficiency for modern commercial, industrial, and infrastructure applications. Engineered with precision and built to last, this system provides a superior alternative to traditional cable and conduit methods.

Key Features & Benefits

1. Modular Flexibility

• Plug-and-Play Design: Tap-off boxes can be installed at any point along the busway without system shutdown

• Scalable Configuration: Easily extend, modify, or reroute as power requirements evolve

• Standardized Components: Compatible accessories and fittings simplify installation and maintenance

2. Enhanced Safety

• Full Insulation: Class B or higher insulation materials throughout

• Secure Locking Mechanism: Positive engagement with visual and tactile confirmation

• Arc-Resistant Design: Contains and mitigates electrical arc incidents

• IP54/IP65 Protection: Dust-tight and water-resistant enclosures available

3. Performance Excellence

• Current Ratings: 100A to 5000A standard range

• Voltage Classes: Up to 1000V AC, 50/60Hz

• Low Impedance Design: Minimizes voltage drop and power losses

• High Short-Circuit Withstand: Up to 100kA for 1 second (depending on configuration)

4. Intelligent Monitoring (Optional)

• Integrated Sensors: Real-time temperature, current, and load monitoring

• Predictive Maintenance Alerts: Early detection of potential issues

• Cloud Connectivity: Remote access to performance data and analytics

Technical Specifications

Construction Details

• Conductor Material: High-conductivity copper or aluminum alloy

• Insulation: Flame-retardant, low-smoke, zero-halogen (LSZH) materials

• Housing: Reinforced aluminum alloy or galvanized steel

• Coating: Powder-coated finish in standard RAL colors

Electrical Performance

• Temperature Rise: ≤55K at rated current

• Dielectric Strength: 3750V AC for 1 minute

• Insulation Resistance: ≥1000MΩ at 1000V DC

• Protection Class: IP54 standard, IP65 available

Standards Compliance

• IEC 61439-6

• GB 7251.6

• UL 857

• CE Marking

• RoHS Compliant

Applications

Primary Industries

• Data Centers: Flexible power distribution to server racks

• Manufacturing Plants: Power supply to machinery and production lines

• Commercial Buildings: Office towers, shopping malls, hospitals

• Infrastructure: Airports, transportation hubs, stadiums

Typical Installations

• Main power risers and feeders

• Machine and equipment power supply

• Temporary or reconfigurable power systems

• High-density power distribution applications

Installation & Maintenance

Installation Advantages

• Reduced Labor Costs: Up to 60% faster installation than conventional wiring

• Minimal Disruption: Live work possible with proper safety procedures

• Space Efficiency: Compact design saves valuable floor and ceiling space

• Clean Appearance: Sleek, professional look with concealed connections

Maintenance Features

• Visual Inspection Points: Transparent sections for quick condition checks

• Modular Replacement: Individual components can be swapped without system replacement

• Expansion Ready: Additional tap-offs can be added as needed

Why Choose Our Plug-in Busway?

Competitive Advantages

1. Proven Reliability: Over 20 years of field performance in demanding environments

2. System Integration: Compatible with our full range of switchgear and distribution equipment

3. Technical Support: Expert engineering assistance from design through commissioning

4. Global Certification: Accepted and installed in over 30 countries worldwide

Value Proposition

• Total Cost Savings: Lower installation costs + reduced downtime = superior ROI

• Future-Proof Design: Adapts to changing power needs without complete replacement

• Energy Efficient: Optimized design reduces power losses over system lifetime

• Sustainable Choice: Recyclable materials and energy-saving performance

Ordering Information

Available in standard lengths (3m, 4m, 6m) with custom lengths upon request. Complete kits include straight sections, elbows, tees, end closures, and hanging accessories. Tap-off boxes available in various current ratings and configurations.
