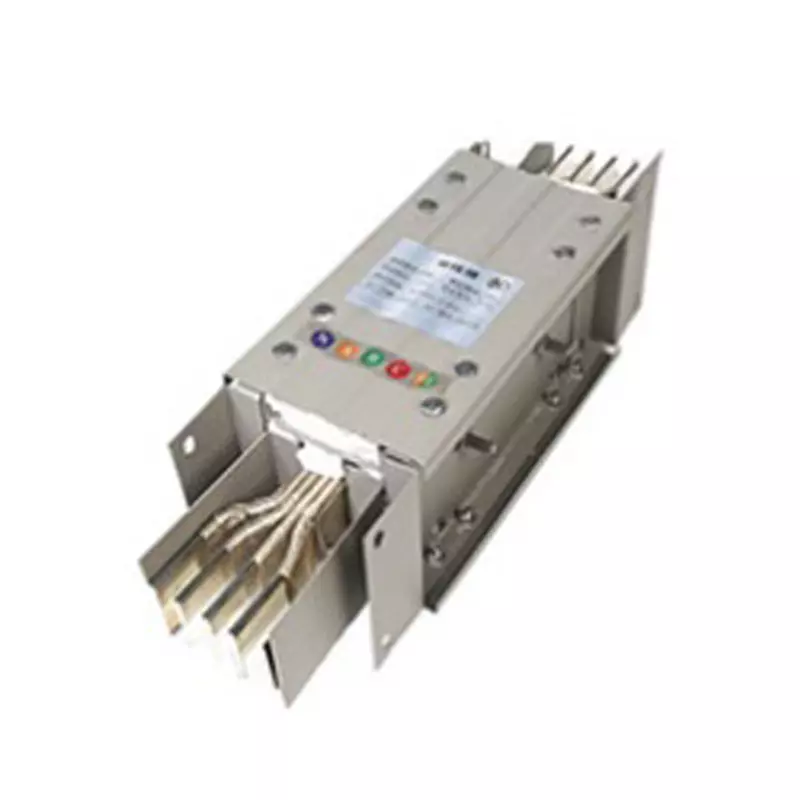

Fire-Resistant Busway System

Product Overview:
Our Fire-Resistant Busway is engineered to maintain critical circuit integrity during fire emergencies, providing uninterrupted power distribution for life safety systems, emergency lighting, and vital operational loads. Designed to exceed international standards, it ensures reliable performance in high-risk environments where fire protection is non-negotiable.

Key Features & Technology:

1. Certified Fire Integrity

   • Withstands temperatures up to 1100°C for 3–4 hours (tested per BS/IEC 60331/UL 864 standards)

   • Maintains full electrical functionality throughout fire exposure

2. Intelligent Multi-Layer Protection

   • Ceramic Silicone Fire Barrier: Self-expanding insulation that forms a rigid char layer under extreme heat

   • Mineral Fiber Reinforcement: Non-combustible thermal buffer with low thermal conductivity

   • Metallic Fire Shield: Reflective alloy enclosure that deflects radiant heat

3. Smart Monitoring System (Optional)

   • Integrated temperature sensors with real-time alerts via IoT platforms

   • Arc-fault detection and early warning capabilities

   • Remote condition monitoring through web/mobile interfaces

4. Enhanced Safety Design

   • Zero halogen emission, minimal smoke generation (complies with IEC 60754)

   • Automatic intumescent sealing at joints to prevent smoke/fire propagation

   • Corrosion-resistant coating (C5-M grade protection for industrial atmospheres)

Technical Specifications:

• Voltage Rating: Up to 690V AC

• Current Capacity: 400A–6300A

• IP Protection: IP66 standard (IP68 available)

• Short-Circuit Withstand: 100kA/1s (minimum)

• Dielectric Strength: 3.5kV for 1 minute

• Compliance: CE, UKCA, IEC 61439-6, UL 857, local fire codes

Typical Applications:

• High-rise building emergency power circuits

• Data centers & server room critical infrastructure

• Hospitals and healthcare facility life-support systems

• Oil & gas platforms and chemical plants

• Airports, metro systems, and transportation hubs

• Nuclear power plant safety systems

Installation Advantages:

• Modular design for rapid deployment

• Field-adjustable length with onsite cutting capability

• Compatible with standard busway supports and accessories

• Maintenance-free operation with 25-year design life

Why Our System?
Unlike conventional fire-protected cabling, our busway offers:
✅ Higher current density in compact footprint
✅ Reduced voltage drop over long distances
✅ Flexible reconfiguration for facility layout changes
✅ Lower total cost of ownership vs. multiple fire-rated cables

Quality Assurance:
Each unit undergoes:

• Partial discharge testing (<10pC)

• Thermal cycling and humidity resistance validation

• Third-party certification by DNV, UL, or equivalent authorities
